SRMI46 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

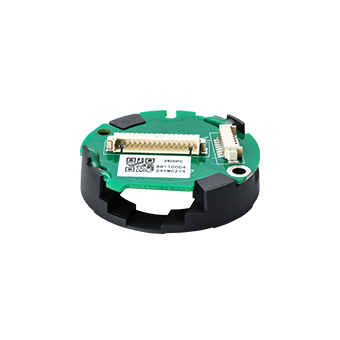

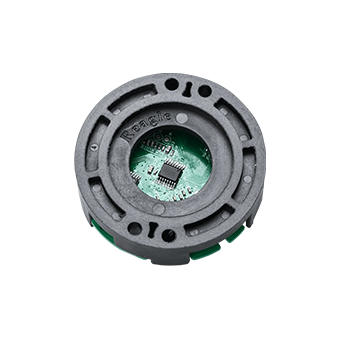

The SRMI46 magnetic encoder is an incremental encoder, offering reliable and stable operation, suitable for various applications that require dependable performance.

The SRMI46 magnetic encoder is easy to install, provides stable pulse output, and can be applied in the servo industry.

Product characteristics

Modular structure, 46mm in diameter, easy to install;

One-click debugging, convenient and fast;

Strict EMC testing, meeting the requirements for harsh electromagnetic environments.

Product advantages

Ultrathin design, high cost-performance ratio;

Easy to install, simple to debug.

Technical specifications
System
Resolution 2500 C/T、1024C/T
Communication Specification Pulse mode
Operating Speed ≤7200rpm
Response Frequency ＜250KHz
Output Format Line drive 26C31
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 50mA
Differential Output Level High level≥4.7V; Low level≤5.25V
Insulation Resistance 10MΩ
Edge Change Time 100ns
Environment
Operating Temperature -40℃~105℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating —（Motor Rear Case Protection）
EMC Features IEC61000-3
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Application
Specification
Split incremental magnetic encoder SRMI46 SPECIFICATION V1.1
3D Model
