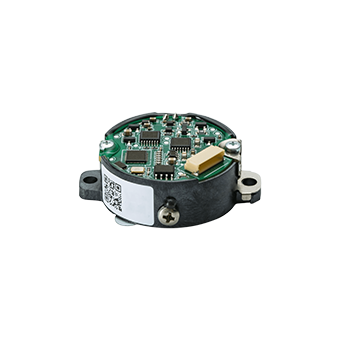

The SROA46 split-type optical encoder is an absolute rotary encoder with precise counting. It is suitable for applications where the motor size is compact but high precision is still required.

Product characteristics

Ultra-thin design of 15.5mm, installation completed in 80 seconds, no calibration required.
Repeatability < ±5 arcseconds.
RS485 interface, compatible with multiple communication protocols.
Bidirectional asynchronous serial communication, 17bit per revolution (up to 23bit), 16bit for multi-turn.
Communication cable can reach up to 50 meters in length.
Rigorous EMC testing to meet harsh electromagnetic environment conditions.

Product advantages

Ultra-thin design with integrated installation.
Rigid connection without springs, providing better system rigidity.
One-click debugging, saving time and effort.

Technical specifications

System

Resolution	Single-turn: 17/23bit；Multi-turn: 16bit
Communication Specification	RS485
Baud Rate	2.5Mbps
Signal Format	Serial Communication Protocol

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	72mA
Differential Output Level	High level≥3.5V; Low level≤1.7V
Insulation Resistance	50MΩ
Edge Change Time	100ns

Environment

EMC Features	IEC61000-4
Operating Temperature	-20℃~105℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating	—（Motor Rear Case Protection）
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
