KON113 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

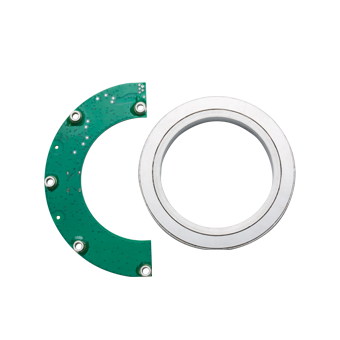

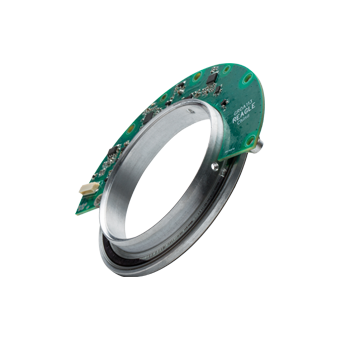

The KON113 series encoder is an absolute rotary encoder, based on optical principles, offering high accuracy. With a reflective optical principle, it achieves a lower installation height compared to standard optical encoders. When paired with Reagle Sensing's installation fixtures, the installation process becomes simple and alignment is precise.

Product characteristics

High precision, with a repeated positioning accuracy of <±0.7";

High dynamic response, achieving an effective resolution of 21 bits;

Radial translation assembly method for convenient installation.

Product advantages

Non-contact installation;
Ultra-thin structural design;
Suitable for various complex operating conditions.

Technical specifications

System

Resolution	Single-turn: 20bit, 23bit, 24bit；Multi-turn: 16bit
Communication Specification	RS485
Baud Rate	2.5Mbps
Signal Format	Serial Communication Protocol

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	130mA
Differential Output Level	High level≥3.5V; Low level≤1.7V
Insulation Resistance	50MΩ
Edge Change Time	100ns

Environment

EMC Features	IEC61000-4
Operating Temperature	-20℃~95℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	1The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
