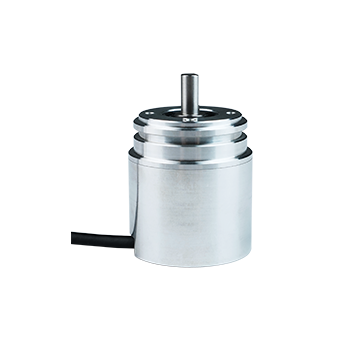

DIN40 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Compact 40mm housing size, effectively saving space;

High protection level, wide operating temperature range,  suitable for harsh environments;

Communication type encoder, equipped with speed, position,  temperature, and other alarm and diagnostic functions;

Tangential cable release method, can be used for axial and  radial wiring.






Technical specifications
System
Outer Diameter φ40mm
Shaft Diameter Output shaft diameter φ 6 / 8 / 10 mm; Blind hole diameter φ 6 / 8 / 10 / 12 mm
Resolution Single-turn: 17bit; Multi-turn: 12bit
Operating Speed ≤6000rpm
Interface CANopen, SSI
Starting Torque 0.03NM
Absolute positioning accuracy 0.35°
Repetitive positioning accuracy 0.2°
Electrical
Supply Voltage 10-30V
Main power supply current consumption (typical) 60mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 50MΩ
Edge Change Time 100ns
Environment
Operating Temperature -40℃~85℃
Hurnidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
Auxiliary Functions Reverse Polarity Protection, Power Supply Protection, Signal Protection, Fault Warning
Electrical Interface Aviation Plug, Wire Release
IP Rating IP 65
Shock 100g, 2ms (EN 60068-2-27)
Vibration 30g, 10Hz ... 2000Hz (EN 60068-2-6)
Specification
3D Model
