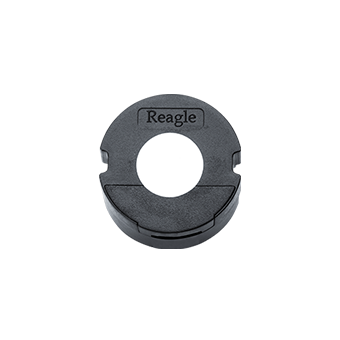

The SROI42 series 2500-line incremental optical rotary encoder is compact and lightweight, with an ingenious shaft locking mechanism. It can be used in the servo, textile, and packaging industries.

Product characteristics

With a housing diameter of 43.8mm and a minimum height of 21.5mm, it features a compact size and lightweight design.

Available in wired and wireless options.

Unique shaft locking design enhances stability and safety.

Output signal port protection design reduces the risk of encoder damage while meeting harsh electromagnetic conditions.

Product advantages

Ingenious shaft locking ensures application stability.

Port protection design reduces failure rate.

Extremely compact size saves installation space.

Technical specifications

System

Resolution	2500 C/T
Communication Specification	Pulse mode
Response Frequency	≤250KHz
Output Format	Line drive 26C31

Electrical

Main power supply current consumption (typical)	55mA
Differential Output Level	High level≥2.4V; Low level≤0.5V
Insulation Resistance	10MΩ
Supply Voltage	5 V ± 5%

Environment

Operating Temperature	-40℃~+105℃
Humidity	≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating	IP 40
EMC Features	IEC61800-3
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
