SROI42 10000-line
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

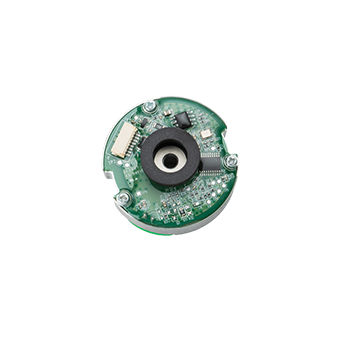

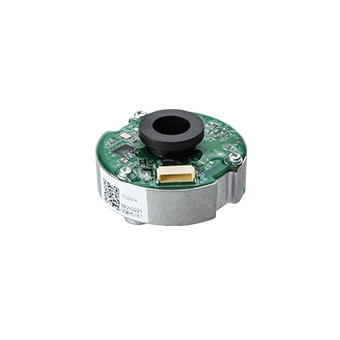

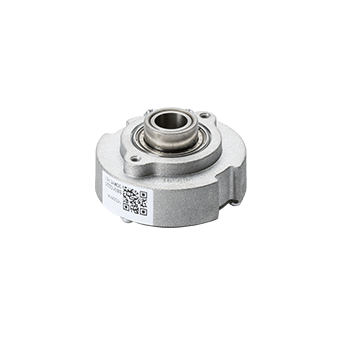

The SROI42 series 10,000-line incremental optical rotary encoder features a compact design, lightweight construction, and a precision locking shaft. It is suitable for applications in industries such as servo systems, textiles, and packaging.


Product characteristics

High resolution with 10,000 lines;

Communication cable can reach a maximum length of 50 meters;

RS485 interface, bidirectional asynchronous serial communication;

Stringent EMC testing to meet harsh electromagnetic environment conditions;



Product advantages

Bus communication, departing from pulse-type interfaces;

Optical grating, significantly improved performance;

Long-distance transmission, outstanding cost advantages.

Technical specifications
System
Resolution 10000ppr
Communication Specification RS485
Baud Rate 1Mbps
Signal Format Serial Communication Protocol
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 90mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 10MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-4
Operating Temperature -10℃~+85℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating IP 40
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
3D Model
