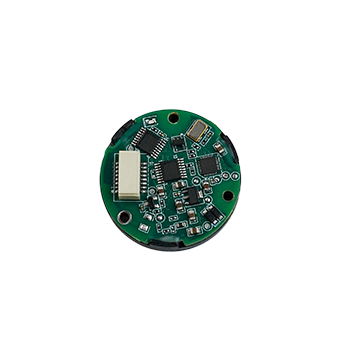

SROI35 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Ultra-thin design, integrated installation;

Shaft less connection, non-contact design, no wear;

Quick zeroing, zero position can be set at any position.






Technical specifications
System
Resolution 5000 C/T
Communication Specification Pulse mode
Response Frequency ≤500kHz
Output Format Line Driver
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 80mA
Differential Output Level High level≥2.4V; Low level≤0.5V
Insulation Resistance 10MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-3
Operating Temperature -20℃~85℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating —（Motor Rear Case Protection）
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
Incremental optical Rotary Encoder SROI35 SPECIFICATION V1.1
